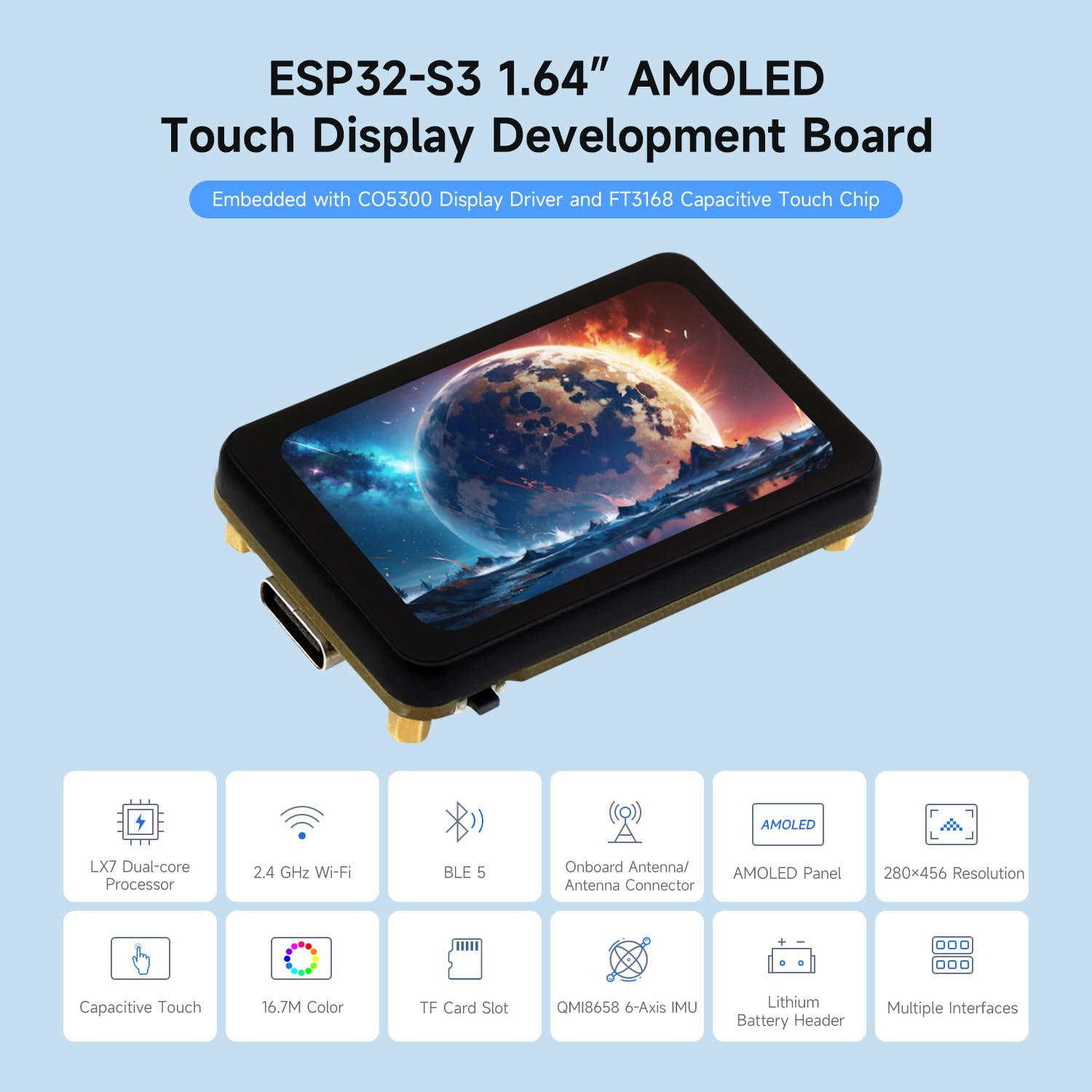

Waveshare ESP32-S3 1.64inch AMOLED Touch Display Development Board, 280x456, QSPI Interface, 32-bit LX7 Dual-Core Processor, Accelerometer & Gyroscope, ESP32 with Display

Marque: Waveshare
Appareils compatibles: Appareil photo, Smartphone, Ordinateur personnel
Technologie de mémoire RAM: PSRAM
Processeurs compatibles: Série ESP32-S3
Type de chipset: Espressif ESP32-S3R8
Plateforme: Personnalisé
Nom de modèle: ESP32-S3-Touch-AMOLED-1.64
Taille maximale de la mémoire RAM: 512 Ko
Type de connecteur d'alimentation principal: 24 broche
Interface de la carte graphique: Intégré

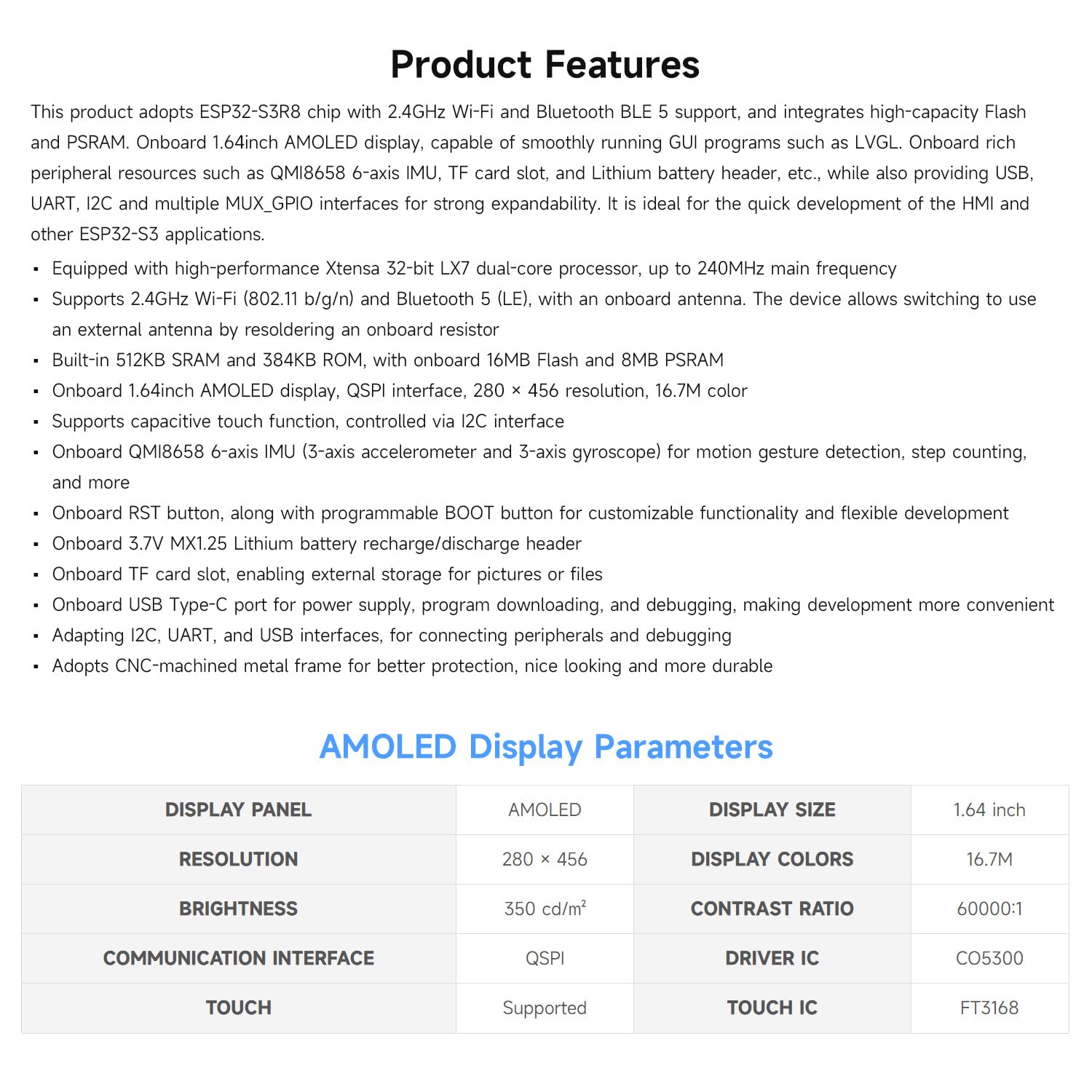

- High-Performance Chip and Connectivity: The product is powered by the ESP32-S3R8 chip with a 240MHz Xtensa 32-bit LX7 dual-core processor, supporting 2.4GHz Wi-Fi (802.11 b/g/n) and BT BLE 5. It comes with an onboard antenna and allows external antenna switching.
- Memory and Storage: Equipped with 512KB S-RAM, 384KB ROM, and an onboard 16MB Flash with 8MB PS-RAM, providing ample memory and storage for running advanced applications.

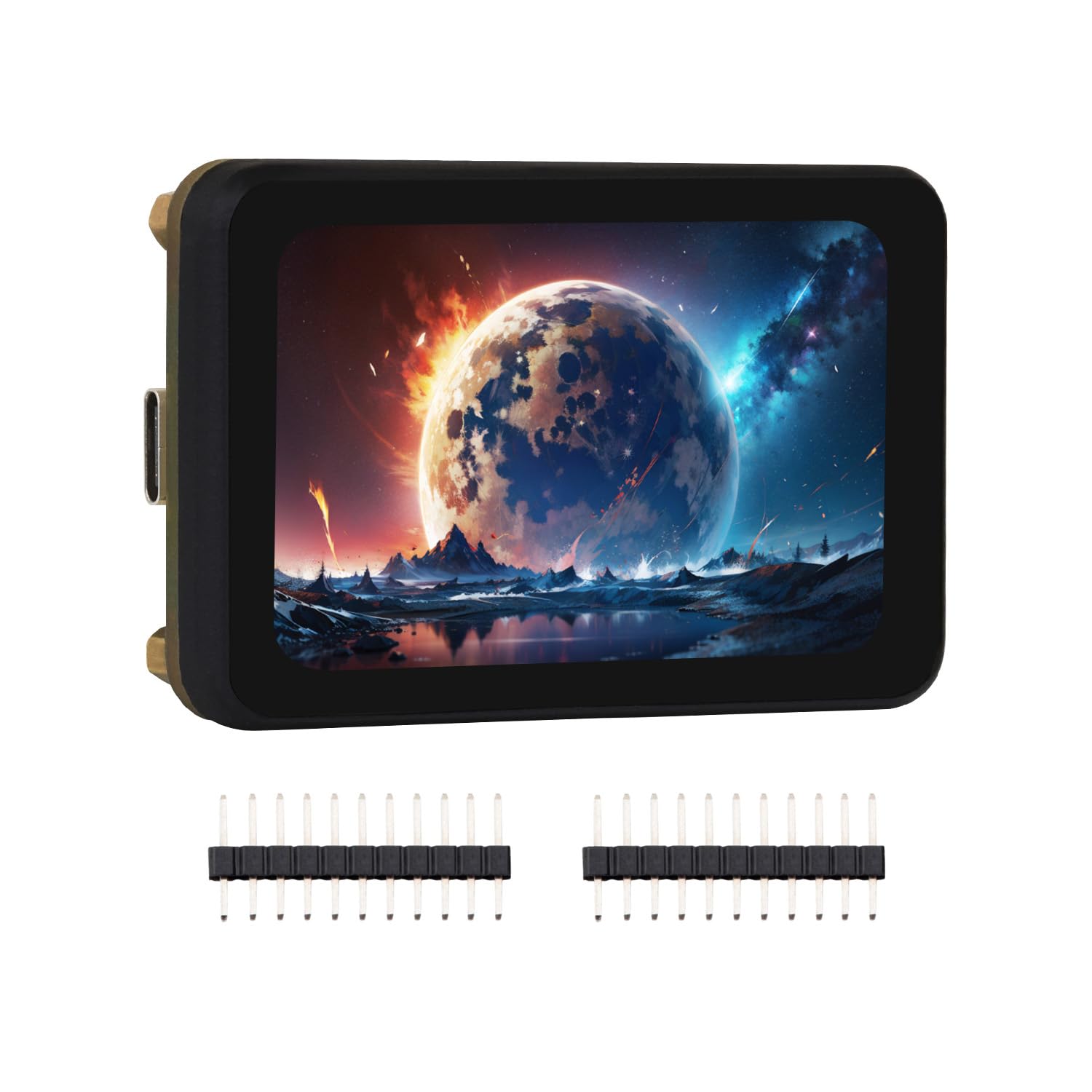

- 1.64-inch AMOLED Display and Touch Function: The product features a 1.64-inch AMOLED display with 280x456 resolution and 16.7 million colors. It supports capacitive touch control through an I2C interface, ideal for GUI programs like LVGL.

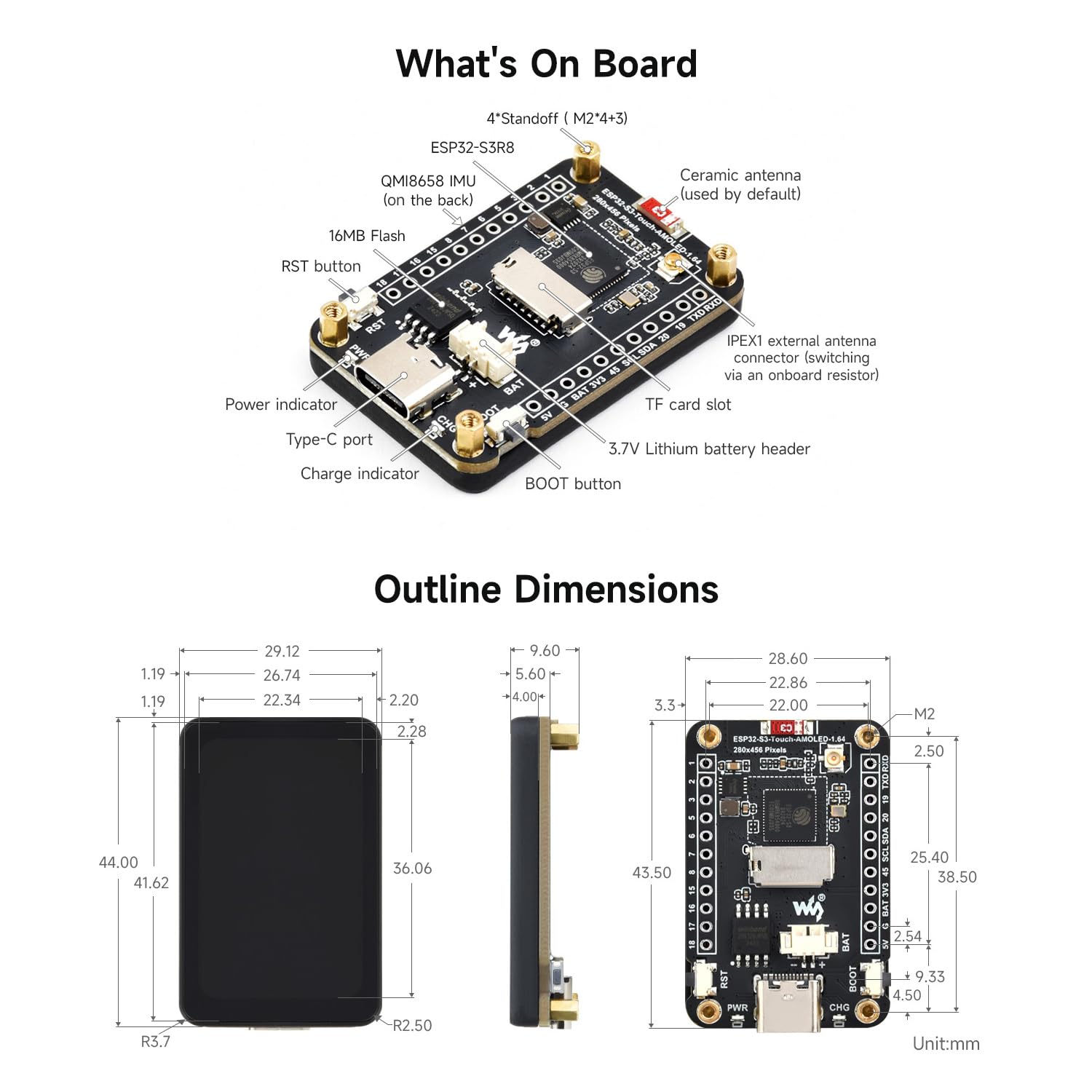

- Rich Peripheral Support: The board includes an onboard QMI8658 6-axis IMU (accelerometer and gyroscope), TF card slot for external storage, a 3.7V li batt header, and multiple interfaces like USB Type-C, I2C, UART, and MUX_GPIO for flexibility and expansion.
- Convenient Development and Durability: With features like a programmable BOOT button, onboard RST button, and a CNC-machined metal frame for durability, the device is perfect for rapid development of HMI applications and other ESP32-S3-based projects.
