Waveshare ESP32-S3 2.16inch AMOLED Display Development Board, 480 x 480 Resolution, 16.7M Color, Supports Dual Microphones, 2.4GHz Wi-FI and BLE 5

Marque: Waveshare
Capacité de stockage mémoire: 8 MB
Vitesse du CPU: 240 MHz
Technologie de connectivité: Bluetooth, Wi-Fi
Fabricant de CPU: Espressif
Technologie de mémoire RAM: SRAM
Nombre d’emballages: 1

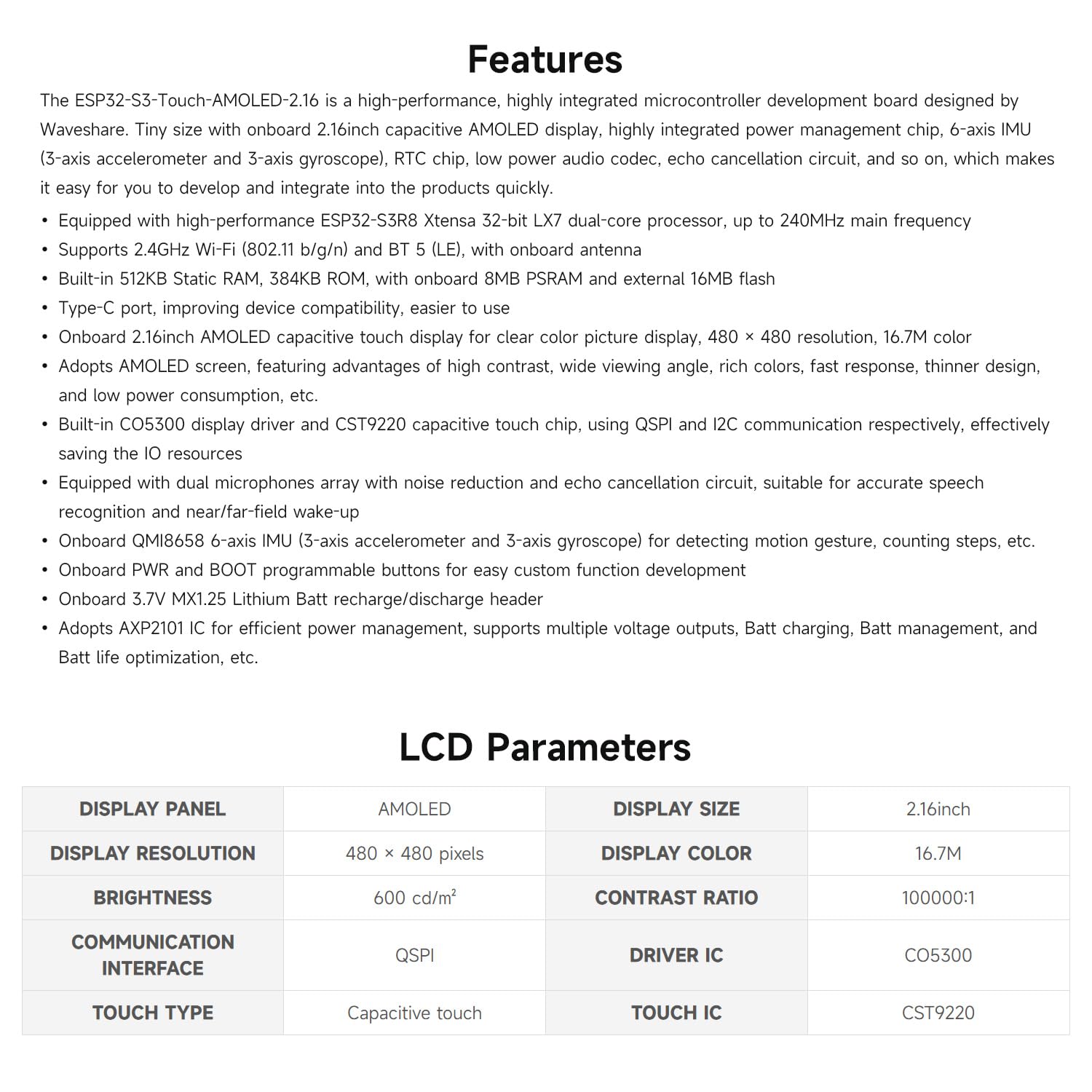

- The ESP32-S3-Touch-AMOLED-2.16 is a high-performance, highly integrated microcontroller development board. Tiny size with onboard 2.16inch capacitive AMOLED display, highly integrated power management chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, low power audio codec, echo cancellation circuit, and so on

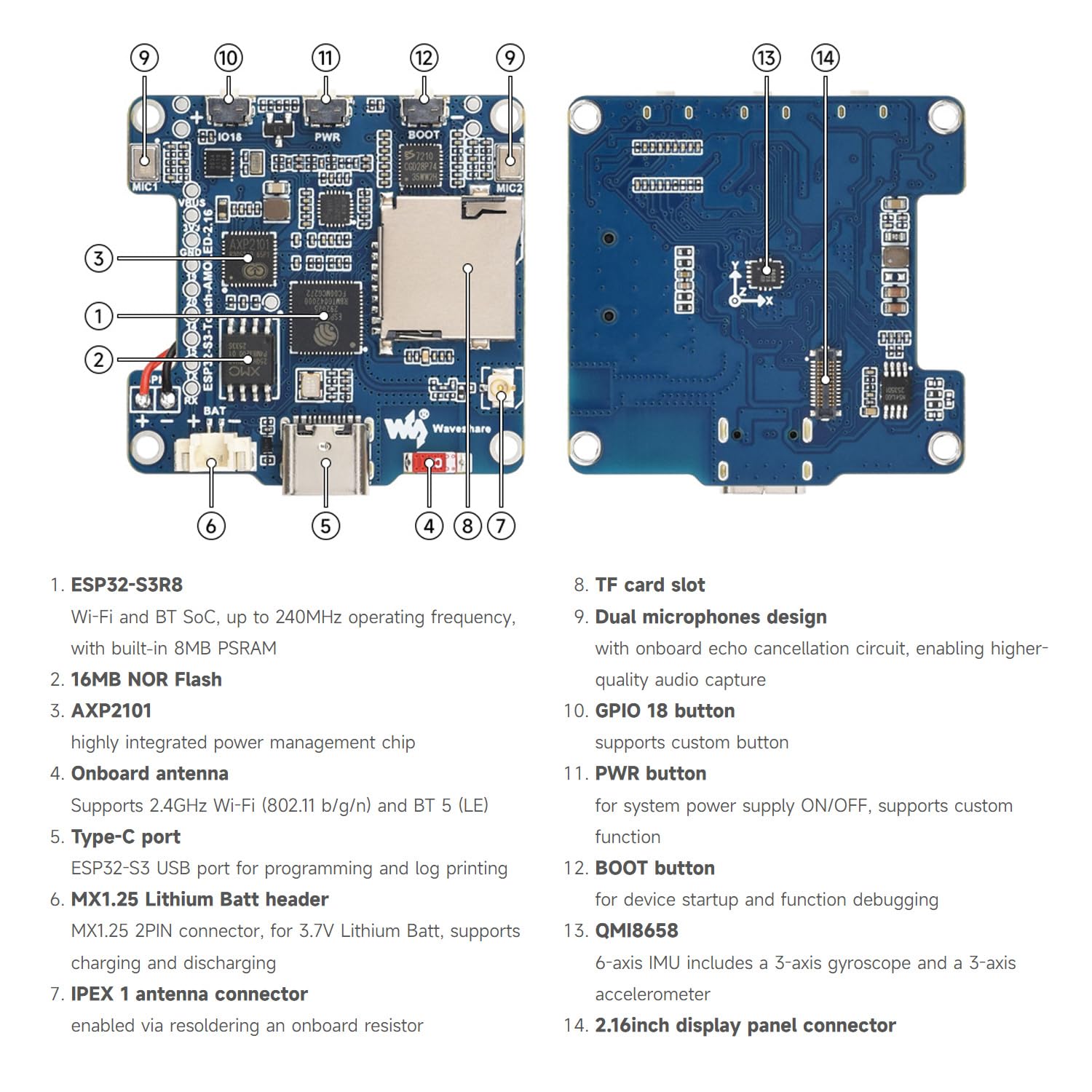

- Equipped with high-performance ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT 5 (LE), with onboard antenna. Built-in 512KB Static RAM, 384KB ROM, with onboard 8MB PStatic RAM and external 16MB flash. Type-C port, improving device compatibility, easier to use

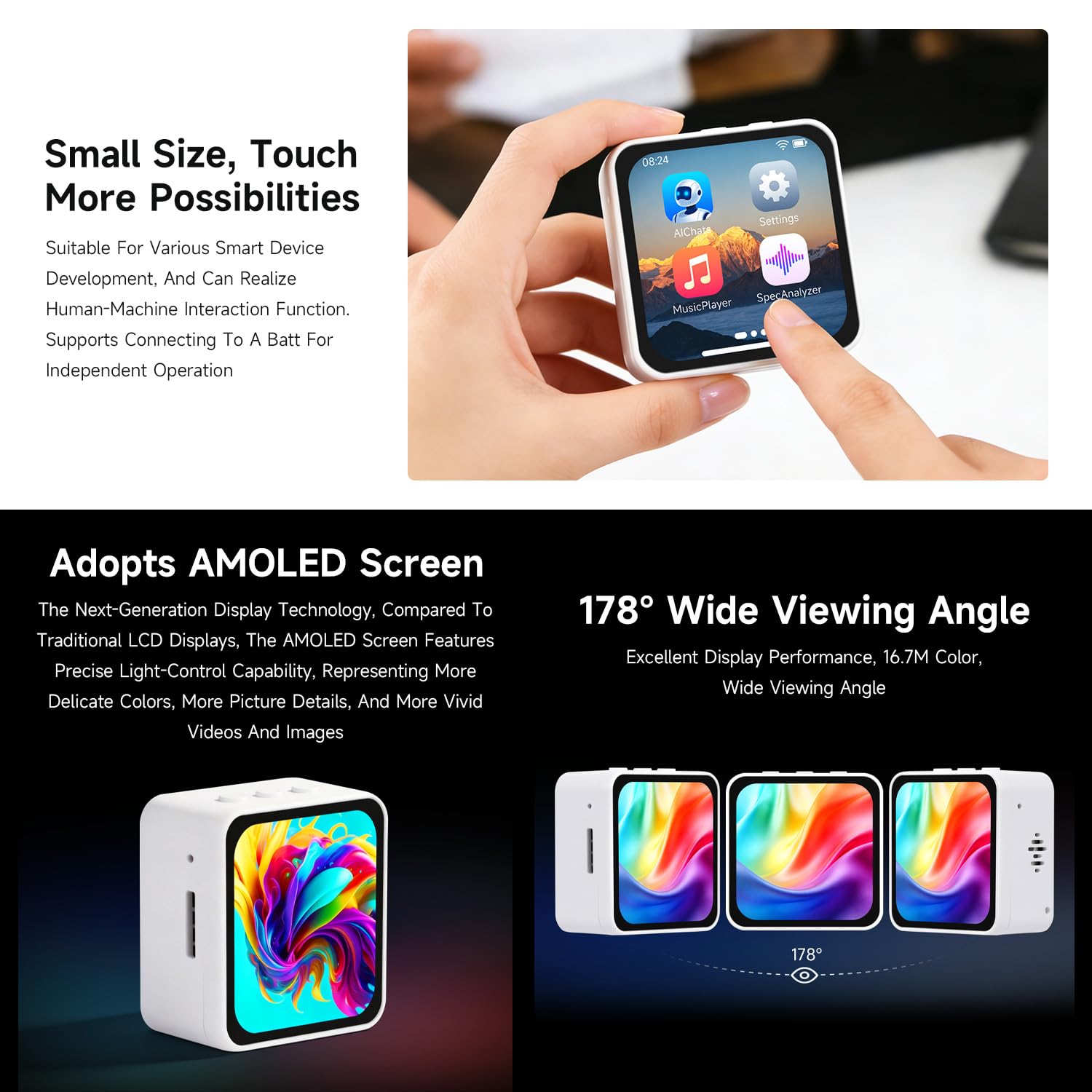

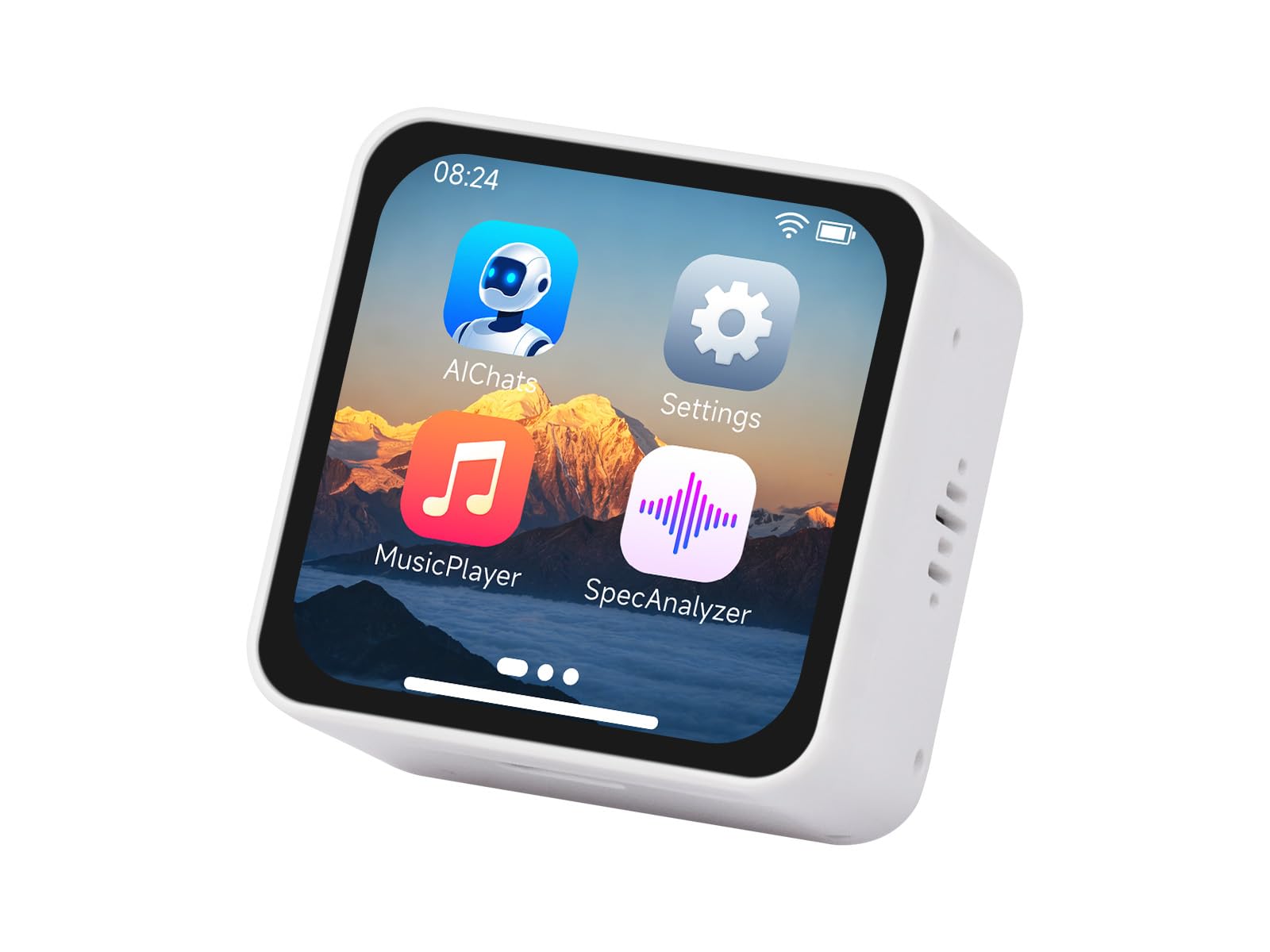

- Onboard 2.16inch AMOLED capacitive touch display for clear color picture display, 480 x 480 resolution, 16.7M color. Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc

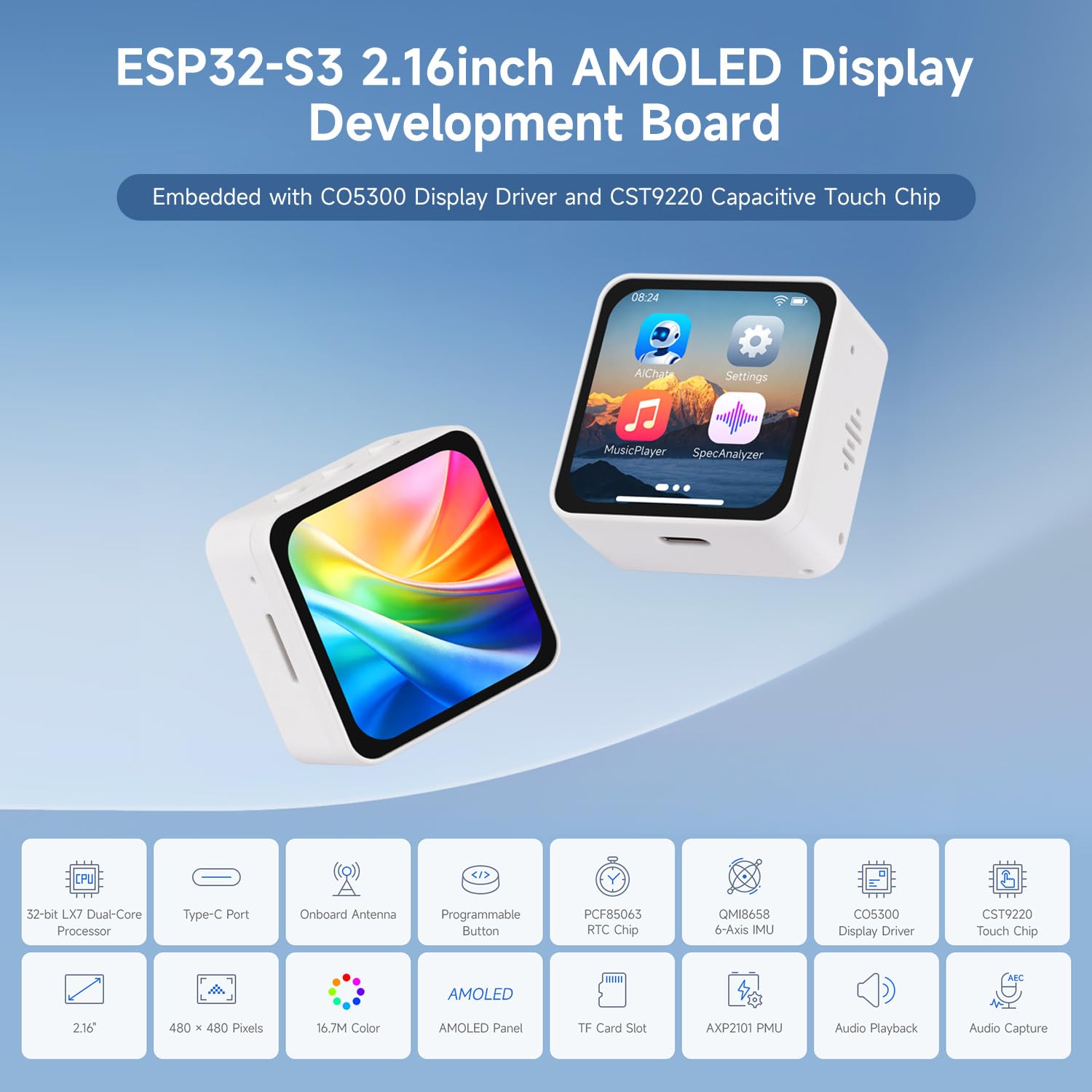

- Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources. Equipped with dual microphones array with noise reduction and echo cancellation circuit, suitable for accurate speech recognition and near/far-field wake-up. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc
- Onboard PWR and BOOT programmable buttons for easy custom function development. Onboard 3.7V MX1.25 Li Batt recharge/discharge header. Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc
